mobile rope handling system

A Tech Edge Project for Wesizwe Platinum Mines’ Bakubung Mine

TECH EDGE’s South African team successfully designed, manufactured and installed a mobile rope handling system for Bakubung Mine.

The equipment was specifically designed to install head- and tail ropes onto a four-rope, surface-mounted, Koepe friction winder having a capacity to handle 100t of rope weight in the 1,000m vertical shaft.

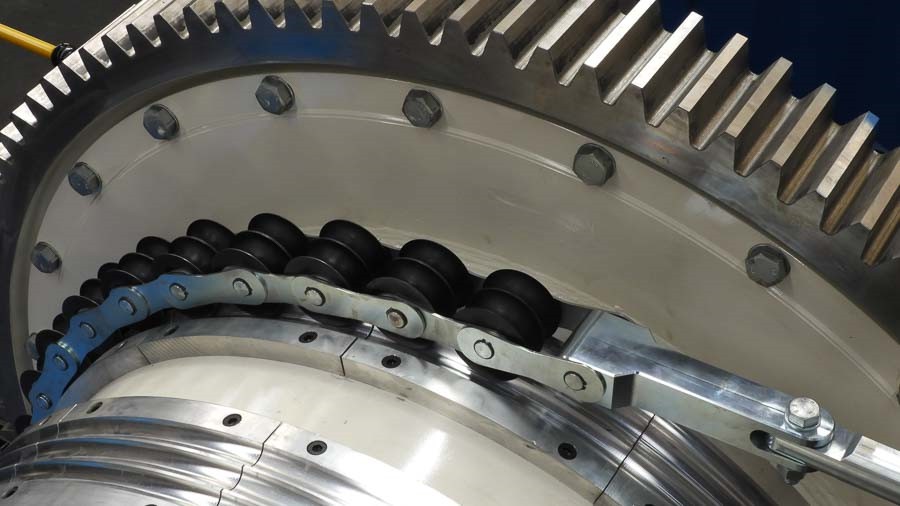

It is also used for roping-up of typical single and double drum man winders. Interchangeable friction liners allow different rope diameters for different winders.

The equipment included:

• Four Reeler Winches

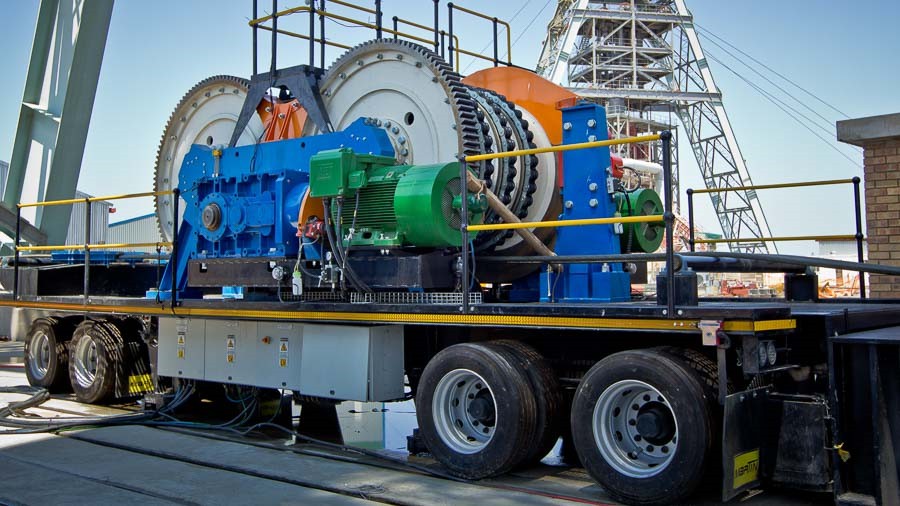

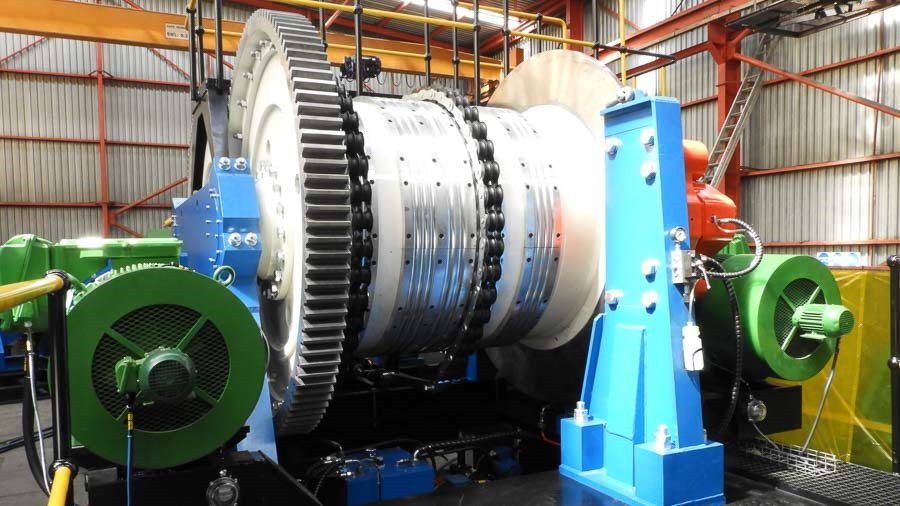

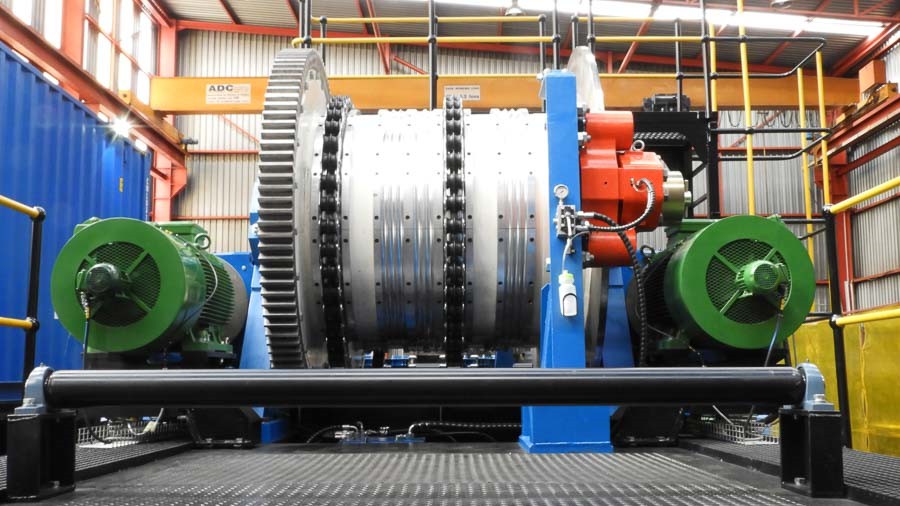

• One four-rope Friction Winch (trailer mounted / relocatable)

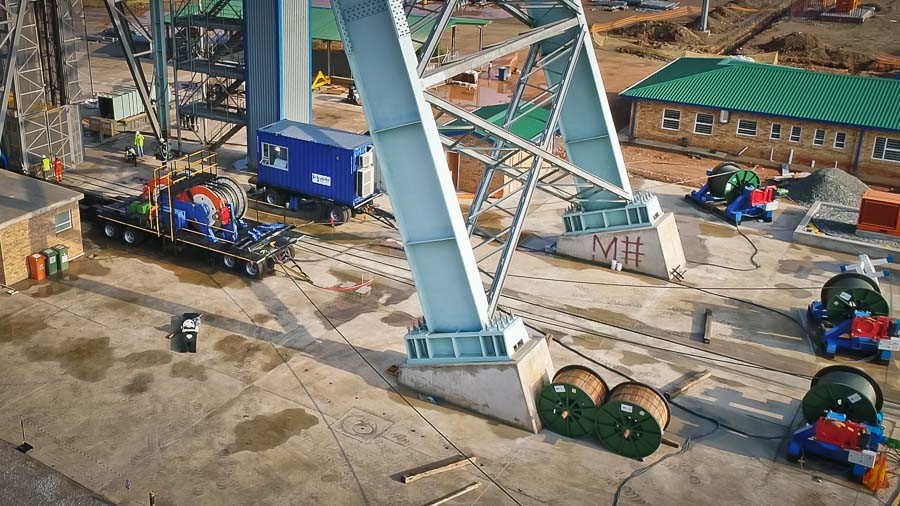

• Four Bank Horizontal Deflection Sheaves (trailer mounted)

• Four Messenger Rope Deflection Sheaves

• Four Messenger Rope Winches

• One Crosshead for tail rope handling at shaft bottom

• Clamping and Lifting Device

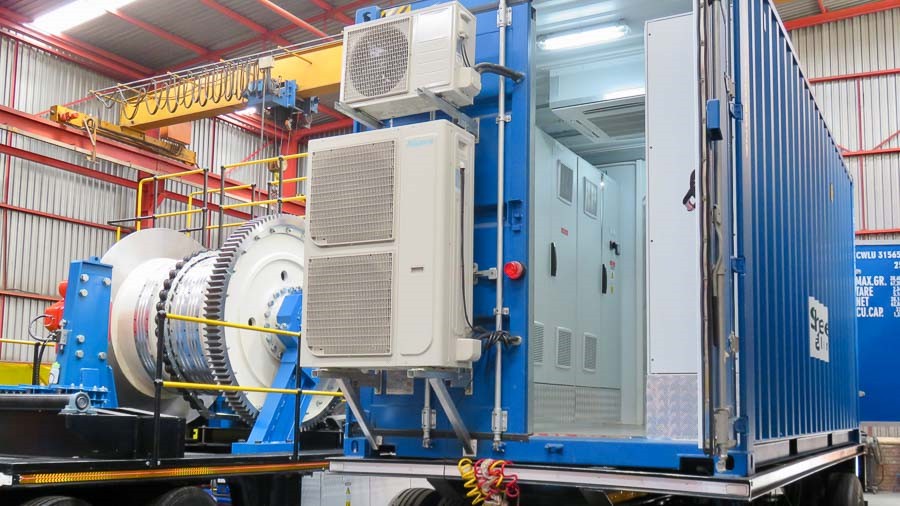

• Full electrical control system, containerised, trailer mounted.

• High speed Brakes

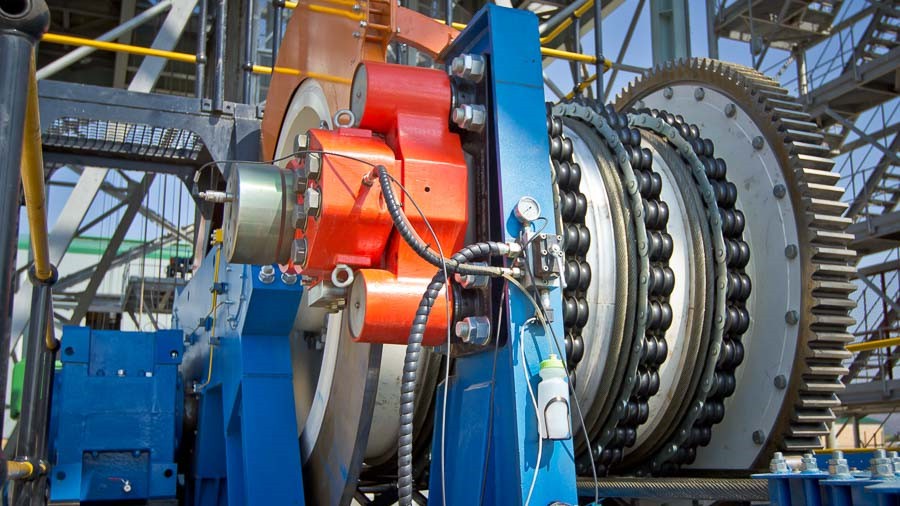

• Main Brakes complete with Svendborg Disc Brake calipers

• Hydraulic Power Pack

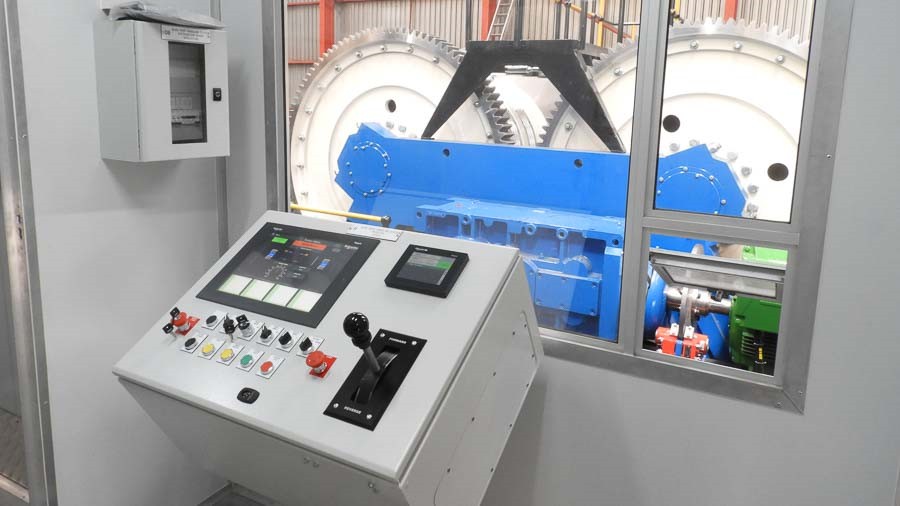

The system is operated from a relocatable, air conditioned, insulated driver’s control cabin. The driver’s desk is fitted with HMI and failsafe Driver’s control and brake levers.

The Control System has different modes of operation:

• Tension Mode

• Maintenance Mode

• Forward/Reverse Mode
